Remote Control Airplanes

Remote control airplanes have been used all around the world for years. However, it was not until 2000s that their usage has been widely increased, and it came naturally with improvements in technology. As the time passed by, cost, design and capabilities of remote control airplanes were developing quickly. Today, wide variety of models and styles is available, and everyone can find the one that will suit their needs. Remote control airplanes have found their place in scientific, government and military organizations as well. They are being used for various experiments, aerodynamic modeling, and military is often using them even as the spy planes, for gathering all kinds of important informations from the enemy. Also, not all of the rc airplanes are for usage. Some of them are maid purely for display and these kind of models are usually made of wood. As for the others, depending on their purpose, remote control airplanes can use different power sources.

Power sources

Those models that are made for hobbyists, as well as those for professionals, contain a mechanism powering propulsion of the aircraft. Most common propulsion systems are electric motor and IC (internal combustion engines).

  • Electric motor

In electric powered models, battery powered electric motor is used. One can achieve throttle control through an electronic speed control, which regulates the motor’s output.

Electronic Speed Control (ESC)

At first, these kind of electric models were equipped with brushed DC motors, and they had an unflattering flight time of max 10 minutes. On the other hand, fully fueled glow-engine system of similar weight and power would likely be able to produce flight-time that’s twice that much.

Brushed 540 motor

Brushed 540 DC motor

Later on, with tech development, electric systems used even more efficient brushless DC motors, and this resulted in improved flight time. Brushless type of motors are also known as outrunner motors for airplanes.

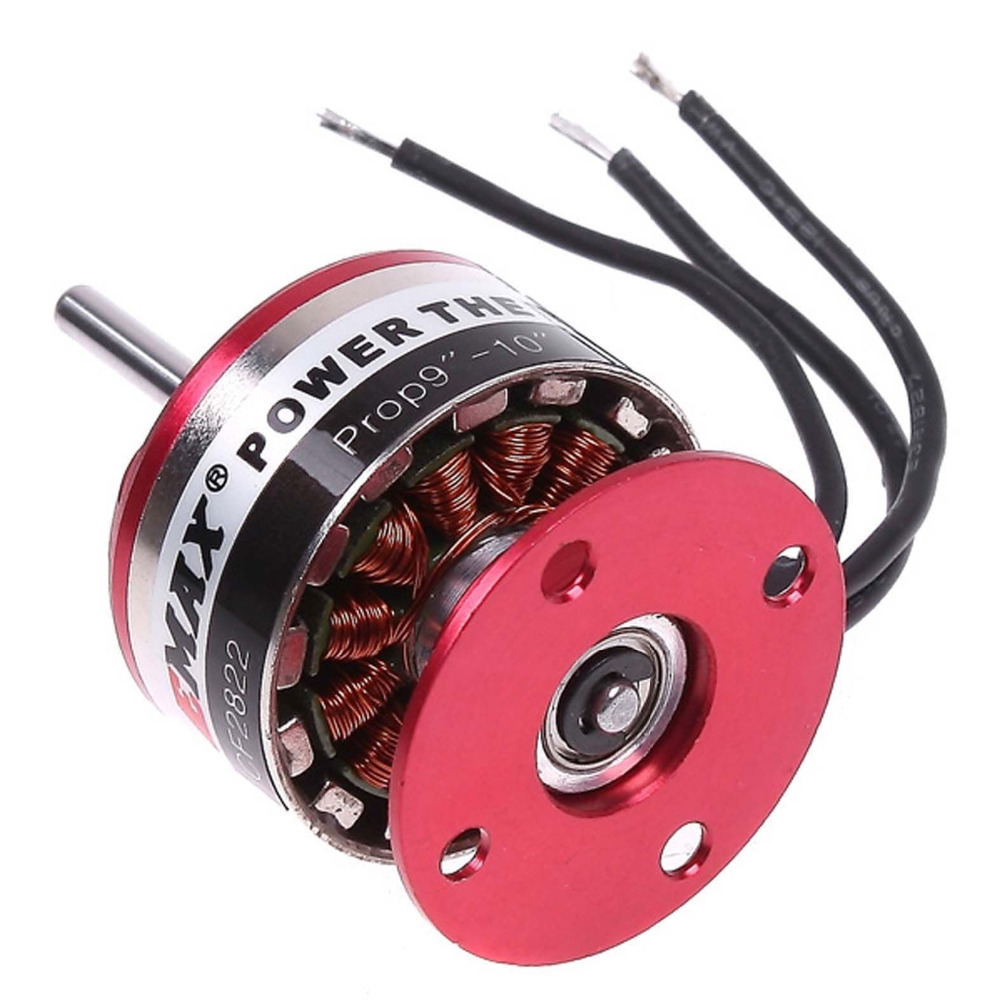

Brushless DC Outrunner motor

Brushless DC Outrunner motor

It works by spinning its outer shell around its windings similar as motor in your CD-ROM. What’s more interesting, you can convert CD-ROM motors to aircraft use.

CD ROM Motor converted for RC airplane use. Rewinded and stock magnet replaced with neodymium magnets.

Maybe the bad side is that outrunners spin slower than inrunner motors, with their more traditional layout, while they are producing far more torque. But exactly this is what makes an outrunner type of motor an excellent choice for directly driving electric aircrafts, because they are able to eliminate the extra weight and complexity of a gearbox. Outrunner motors have quickly become popular and are now available in many sizes. Their compact size and high efficiency make them widely popular in other types of models too.

  • Gas Engines

RC Gas Engine

RC Gas Engine

Most of hobby people refer to the word gas airplanes, but mostly the airplanes are powered by a nitro engine (also known as a glow engine) and usually bigger scale models have real gas engines.

The only differences between the engines are following:

  1. Nitro engine use glow fuel (a mixture of methanol, nitromethane, and oil.) while gasoline engines use a mixture of regular gas and oil,
  2. Nitro engines use glow plugs to ignite the fuel, but gasoline engines use spark plugs. Glow plugs produces a red hot spring when a voltage of 1.5V is applied, but spark plug produces a spark when needed, operating voltage from 10’000-20’000 volts, yes that’s not a typo thousands of volts. Real car engines produce up to 30’000 volts for spark plugs.
Glow Plug

Glow Plug

Spark Plug

Spark Plug

Types of construction

As with other radio controlled models, you can get Ready To Fly RC plane kits or you can assemble one by yourself.

Ready To Fly

Ready To Fly airplane kits usually come pre-assembled and everything you are required to do is to attach one wing, or some kind of similar easy to do job.

Everything is already included in the kit. This means that with model, you get a transmitter, receiver and a battery. The bad side of these is that you also get configuration of the models pre-determinated.

Almost Ready To Fly

These types of airplanes need a motor, transmitter, receiver and battery to be completed. All in all you receive only the model itself and you’re required to purchase the main electronics yourself.

DIY remote control airplanes

On the other hand, you can always build planes from previously published plans, with included instructions. Usually, parts need to be cut out from sheet wood using templates. A model plane built from scratch is more valuable than “industrial” one, because you created the project from the plans. The latest and more specialized designs are usually not available in a kit form. This is something that professionals often do, because this way they can suit the rc airplane to their needs completely.
